Manual vent and drain valve
Manual drain and vent valves from VOSS complement customized thermal management systems for battery energy storage systems and enable the controlled draining or venting of liquid cooling circuits during service, maintenance, or repair work.
Designed for ease of maintenance from the very beginning
In liquid-cooled battery storage systems, cooling circuits must be regularly inspected, maintained, or expanded throughout the product’s life cycle. This requires well-designed service concepts. Drain points, usually located at the lowest point of the circuit, enable the targeted drainage of coolants during maintenance and service work. They support efficient management of the cooling system and facilitate work on individual components or system sections.

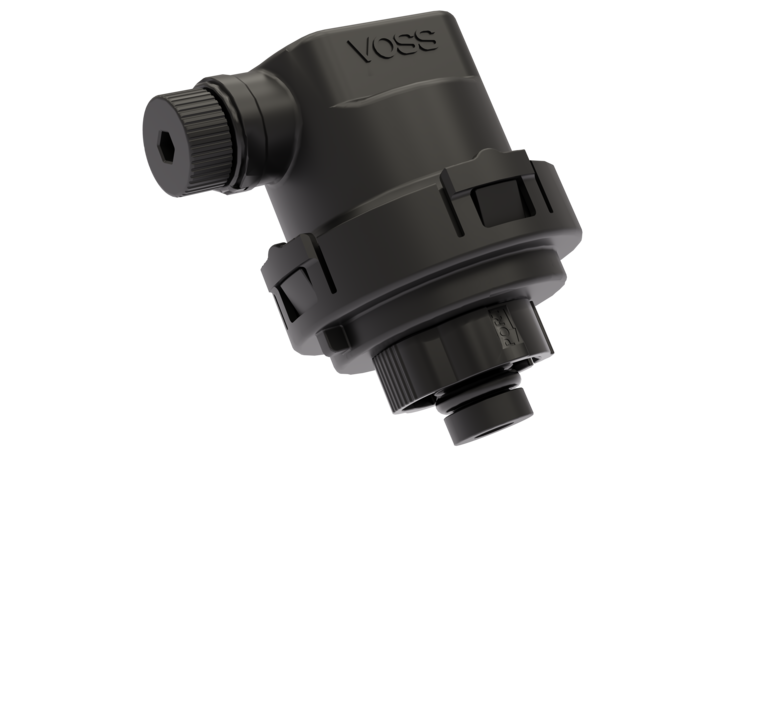

Integrated at the highest point of the cooling system, the single-sided flow stop valves allow for manual venting by connecting a line with a matching complementary contour.
With its experience in developing customer-specific thermal management solutions, VOSS integrates appropriate valves for manual drainage and venting into the system design at an early stage, thereby laying the foundation for maintenance-friendly complete systems.
Produktvorteile
- Single-sided flow stop valve for manual operation
- Leak-free when closed and not actuated
- Inserting the appropriate line activates automatic valve opening
- Compact design
- Can be used as a manual vent valve when integrated at the highest point of the circuit
- When integrated at the lowest point of the circuit, can be used as a manual drain valve
- Supports efficient maintenance and service processes
- Part of comprehensive connection and manifold concepts
Technical data
Design/Function
Single-sided flow stop valve – For manual draining and venting of the circuit
Operating Pressure
Depends on system specifications; standard: ???
Temperature Range
Depends on system specifications; standard: -40 °C to +120 °C
Materials
Depends on the connector system; standard: plastic
Typical applications
Single-sided flow stop valves are part of this holistic system approach and support the implementation of efficient and service-friendly cooling systems for stationary energy storage systems.

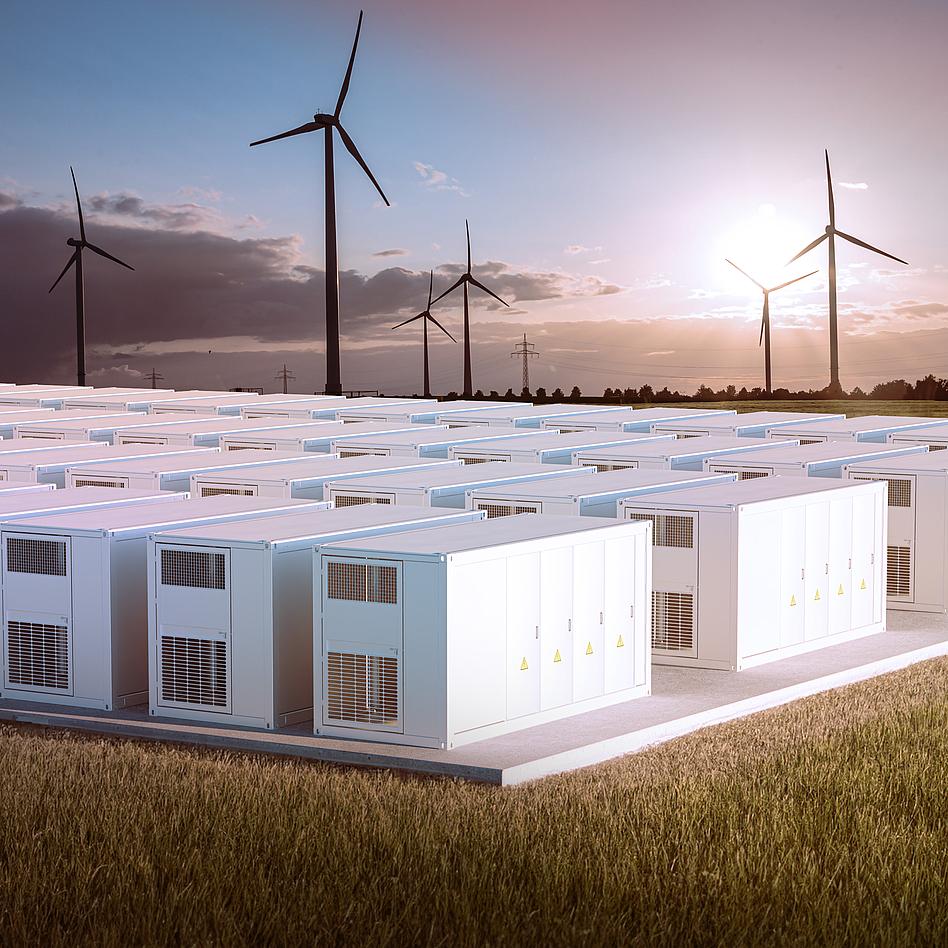

Battery Storage Systems

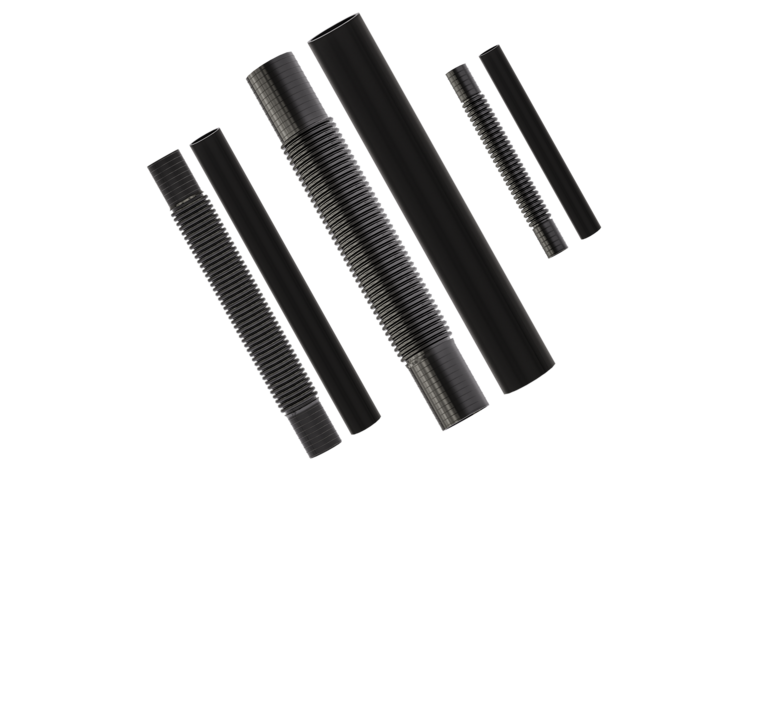

Ready-to-install lines, various valve types, manifolds, and connection systems for the liquid cooling of modern battery storage systems.
