Lines for liquid cooling
The performance and service life of battery energy storage systems (BESS) depend largely on reliable temperature control. VOSS lines for liquid cooling systems ensure the safe transport of coolants within the battery storage system, thereby making an important contribution to the operational safety, efficiency, and availability of modern energy storage systems.
Reliable thermal management optimized for demanding cooling circuits
In BESS applications, line systems must continuously withstand temperature fluctuations, vibrations during transport and installation, and a wide variety of environmental influences. VOSS offers comprehensive line solutions designed for high operational reliability and a long service life. Thanks to robust materials, high resistance to media, and application-specific design, the line assemblies meet the demanding requirements of stationary energy storage systems in a wide variety of operating environments. Optimally matched components allow cooling circuits to be efficiently integrated and simplify installation processes.
Product advantages
- Safe transport of cooling media within the battery system
- High resistance to temperature and environmental influences
- Reliable operation throughout the storage system’s entire service life
- Minimization of potential leakage risks
- Low maintenance requirements
- Inner diameters from 6 to 60 mm available for fluid supply, suitable for applications for mobile storage to large-scale storage systems
- Sustainable thanks to the use of bio-based plastics
- System solutions comprising lines, connection technology, and interfaces
Technical data

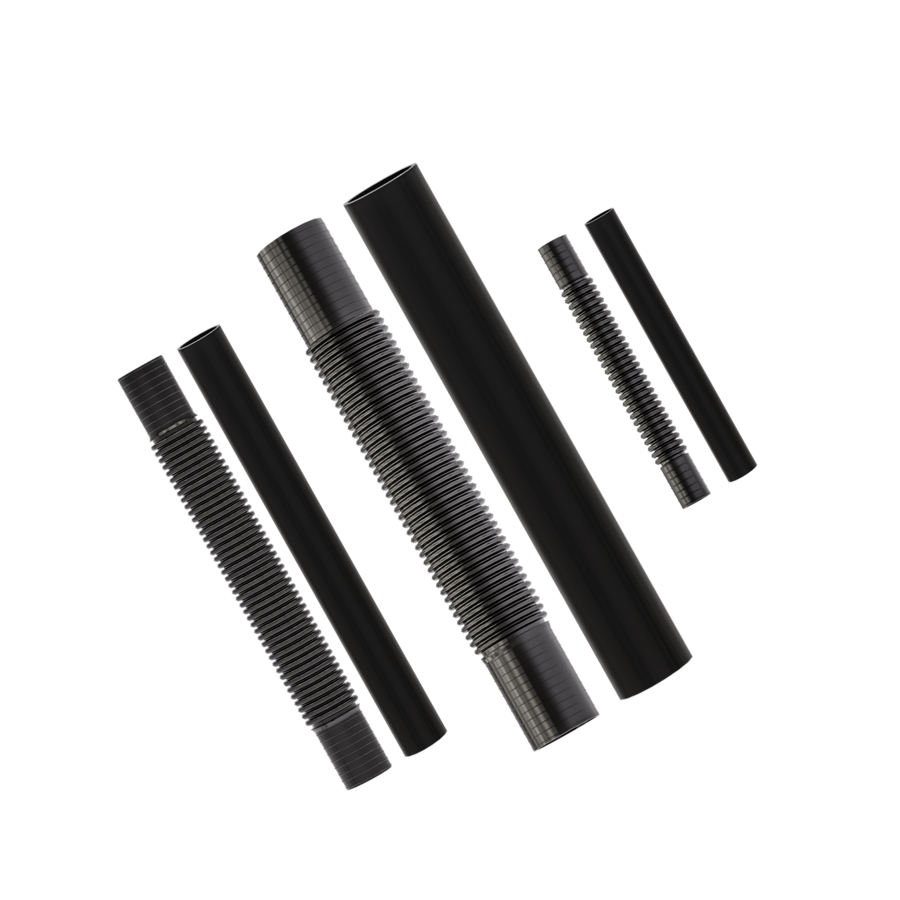

Line material
Wide selection of plain tubes for cost-effective and stable line routing
Wide selection of corrugated tubes for maximum flexibility and tolerance compensation
Connection technology
Quick connect systems with VOSS interface: 246NX, 270, 270DL, 271, 271DL, 272
Quick connect systems according to VDA connection: 275 VDA
Quick connect systems according to SAE connection: 241, 241 N-SL
Manifolds and connectors
Additional components
Double-sided flow stop valves
Vent and drain valves
Integration of customer-specific and various standard components possible
Typical applications

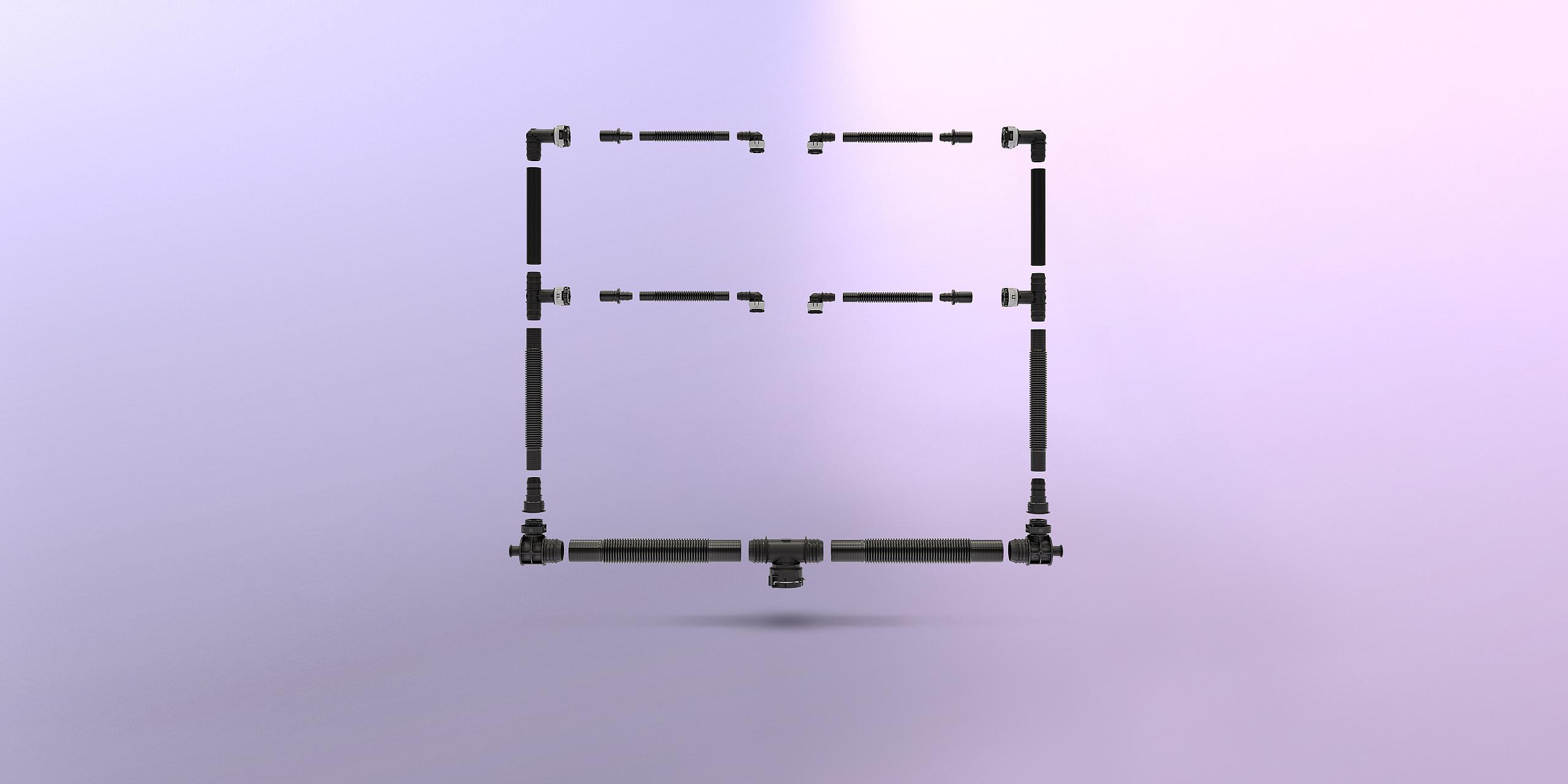

Using ready-to-install system solutions for battery temperature control, VOSS develops customized line routings for the liquid cooling of modern battery storage systems.
Battery Storage Systems
Ready-to-install lines, various valve types, manifolds, and connection systems for the liquid cooling of modern battery storage systems.
Matching products
We take a holistic approach. In addition to custom-made, ready-to-install lines, VOSS offers a wide selection of connection components.
