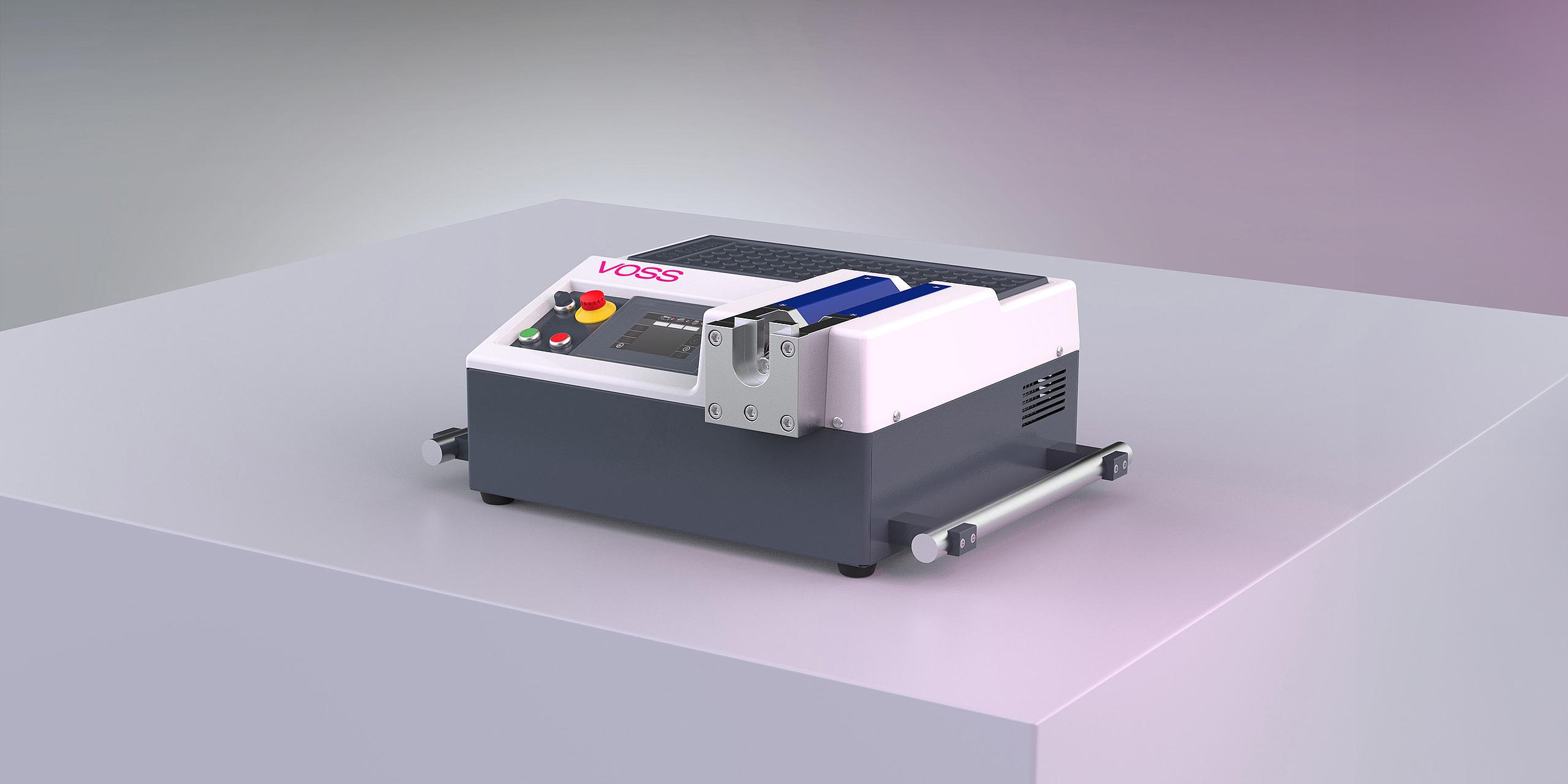

VOSS Type 90 Comfort

The electro-hydraulic preassembly device has been developed for the fast and safe series assembly of cutting rings and 10° flared cones. Automatic tool recognition, error detection and a sophisticated tool concept make this preassembly device the ultimate.

Ideal for preassembly in large-scale production

Preassembly in large-scale production has its own requirements. Tools must be changed quickly, cycle times must be maximized, and potential sources of error that could compromise an entire batch must be eliminated. The solution to these challenges is VOSS Type 90 Comfort. The preassembly device reads the RFID chips integrated in the VOSS tools wirelessly and automatically adjusts itself to the tool. This ensures the shortest possible set-up times and effectively prevents operating errors - even with constant tool changes. Simple, precise and safe - especially for narrow tube bends.

Suitable for preassembly of the following systems:
VOSS Ring M, VOSS 2S VA, VOSS ES-4, VOSS ES-4VA, VOSS BV-10, ZAKO

VOSS Type 90 Comfort - the preassembly device with automatic fault monitoring
VOSS Type 90 Comfort - the preassembly device with automatic fault monitoring

Product advantages

  • Automatic tool recognition
  • Error detection
  • Piece counter freely programmable
  • Preset and freely selectable installation parameters
  • Optionally with foot switch
  • Suitable for series assembly
  • Shortest cycle times
  • Calibration service included

Contact us now

Technical data

Connection:
400V

Weight:
90 kg

Dimensions (WxHxD):
800x308x615

More detailed information



VOSS Catalogue Hydraulik Connection Tech.



DE EN CN ES FR IT PL



VOSS Brochure Ready to install lines



DE EN FR IT



VOSS Brochure Pre-Devices and Services



DE EN CN ES FR IT

Matching products

Our approach is holistic. In addition to a wide range of suitable connection components, VOSS offers an extensive portfolio of preassembly devices, tools and aids.

Are you looking for fast and reliable preassembly for your cutting ring connections?

The VOSS Type 90 Comfort offers maximum ease of use with the shortest cycle times.
